A Wall That Absorbs Sound

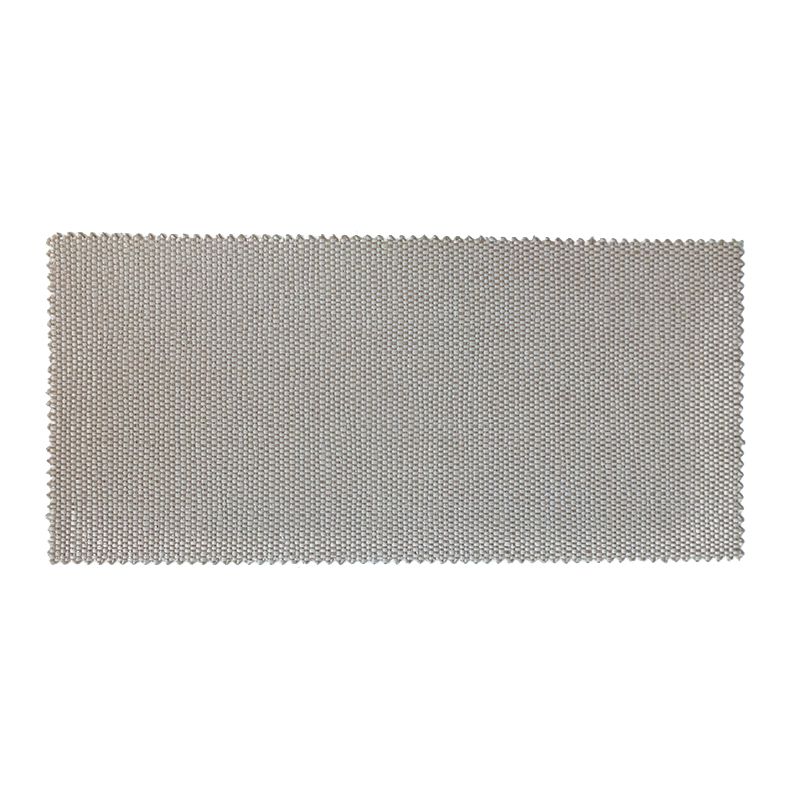

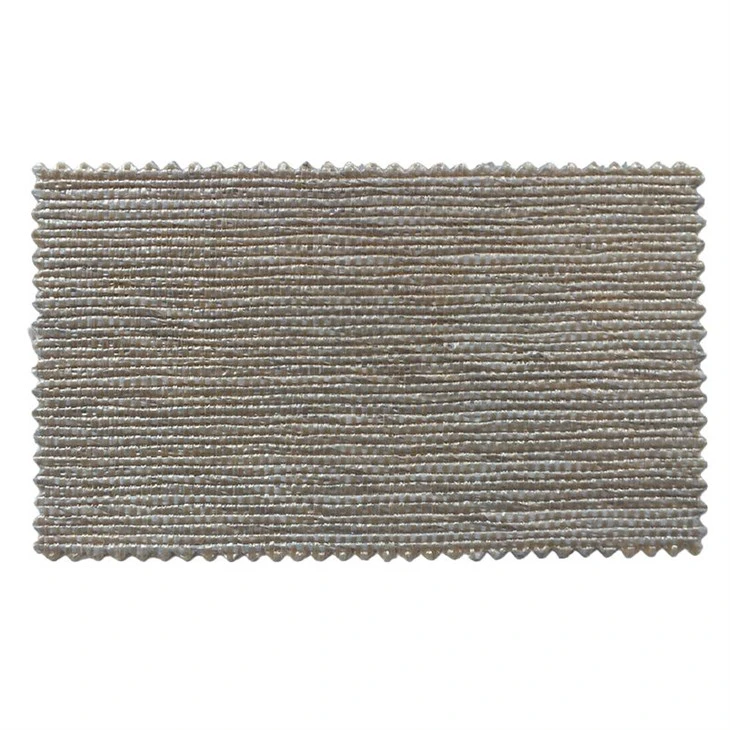

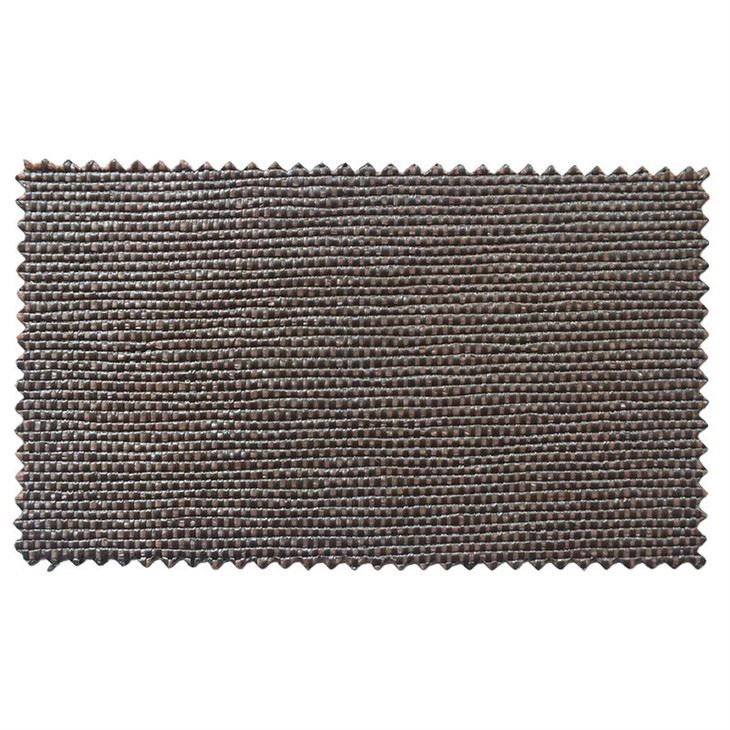

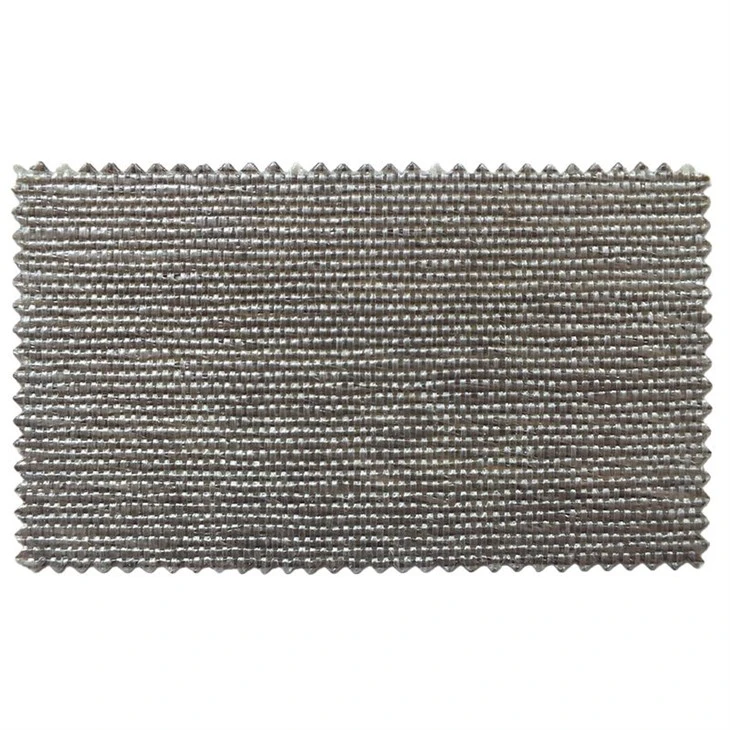

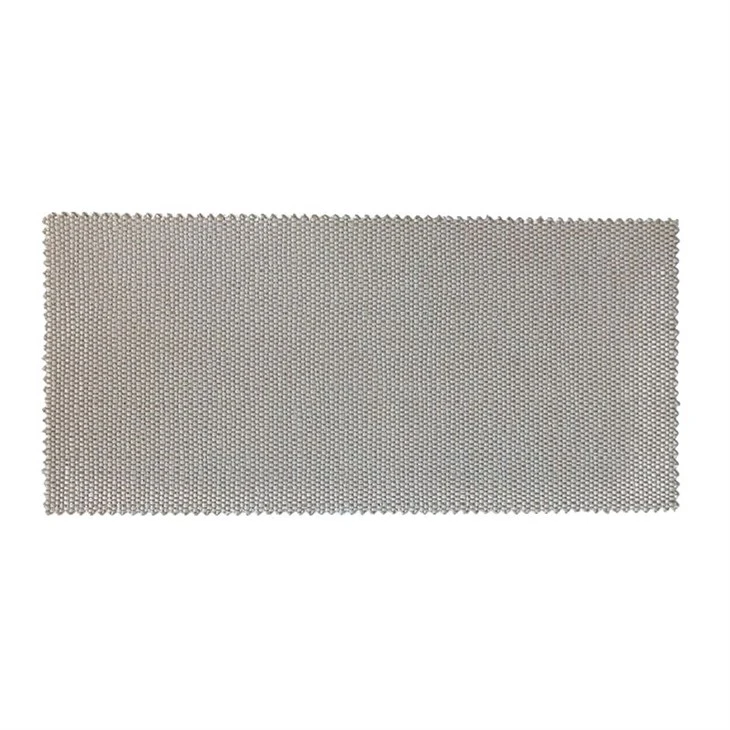

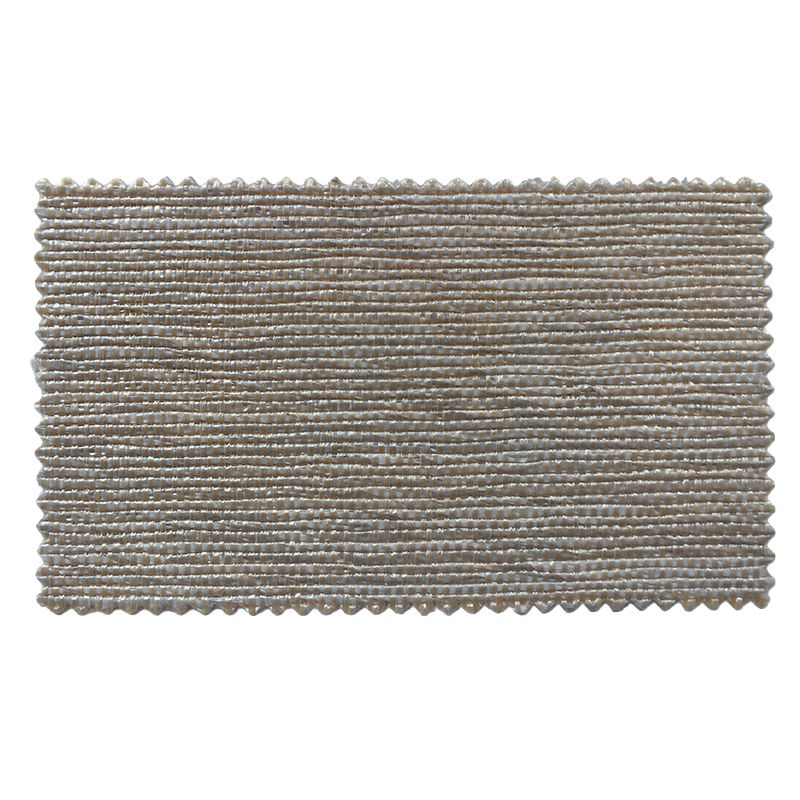

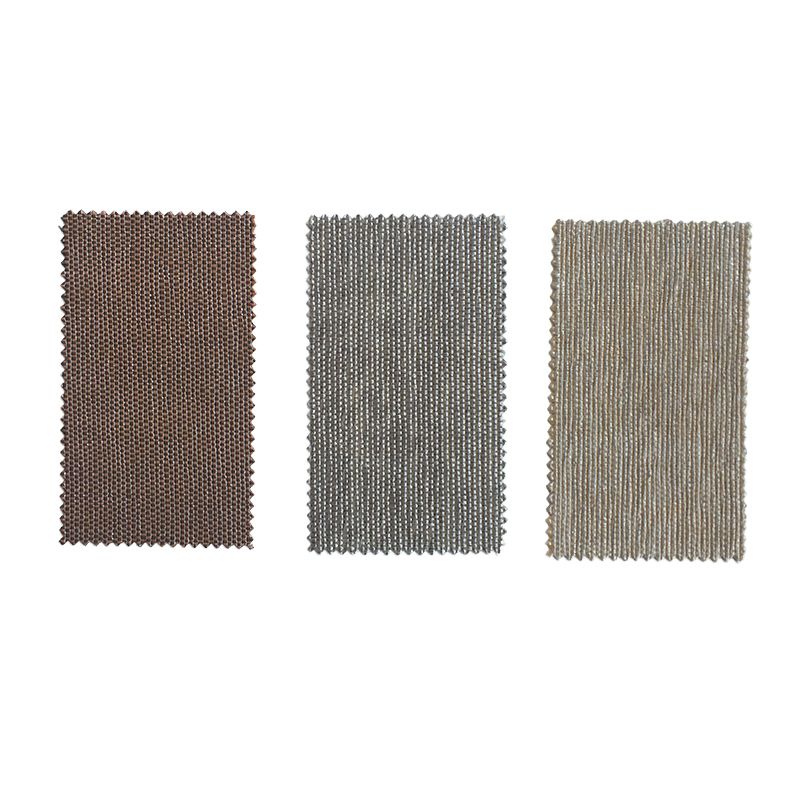

Do you have a room that echoes or makes voices unclear? Our PE Soft-Panel Woven Wall Covering solves this problem. A foam layer behind the fabric absorbs sound.
- NRC rating: 0.45 – absorbs 45% of sound energy.
- In a 20 m² meeting room, echo time can drop from 1.2 s to 0.8 s.
This makes rooms quieter and more comfortable, ideal for offices, classrooms, or playrooms.
Two Foam Densities for Optimal Performance
We offer two foam options depending on your acoustic needs:
|
Parameter |
Options |
|
Foam Density |
25 kg/m³ (mid/high frequencies) or 35 kg/m³ (wide frequency range) |
|
NRC Sound Rating |
0.40–0.50 (depends on foam type) |
|
Total Thickness |
5 mm, 8 mm, 10 mm |
|
Face Fabric Weight |
180–220 g/m² |
|
Peel Strength |
≥5 N/cm |
- 25 kg/m³ foam works best for human voices and higher-frequency sounds.
- 35 kg/m³ foam provides more balanced absorption across all frequencies.
- Thicker foam improves sound absorption further.
Soft Foam Adds Safety
The foam not only absorbs sound but also cushions impacts. Ideal for:
- Daycare centers
- Playrooms
- Sports rooms
Nanping Jinwei manufactures all three layers together: the face fabric, foam core, and non-woven backing. Installation is simple with standard wall glue.
Ordering Info: Minimum order is 500 meters. National lab test reports are available. Your rooms will sound better and feel safer for everyone.
